Beam Clamp Security Strap
Beam Clamp
Description

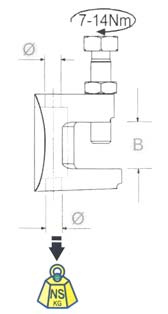

Beam Clamp
- to fix on to beams without welding or drilling
- compact cast body
- VdS and FM approved
- plain or thread impression
- hollow pointed bolt or better grip
- Surface finish: electro zinc plated
Data
| Number |
Ø |
B mm |
VdS |
FM |
Corrosion Protection |
Box Qty |
kg/1 |
| 389500 |
9 |
18 |
VdS |
- |
1 |
100 |
0,09 |
| 386810 |
M8 |
18 |
VdS |
- |
1 |
100 |
0,09 |
| 389510 |
11 |
18 |
VdS |
FM |
1 |
100 |
0,15 |
| 386820 |
M10 |
20 |
VdS |
FM |
1 |
100 |
0,15 |
| 389520 |
13 |
26 |
VdS |
FM |
1 |
80 |
0,17 |
| 386830 |
M12 |
26 |
VdS |
FM |
1 |
80 |
0,17 |
| 389505 |
17 |
26 |
VdS |
FM |
1 |
50 |
0,32 |
Security Strap

Description
Security Strap
- to secure beam clamps from slippage
- length 350 mm
- strap size 25 x 2,5 mm
- Surface finish: electro zinc plated
Data
| Number |
B mm |
L mm |
Corrosion Protection |
Box Qty |
kg/1 |
| 590240 |
25 |
350 |
1 |
50 |
0,20 |
|
|
