HSS - M2 Ground Blacksmiths Drills - Retail Tube
HSS - M2 Ground Blacksmiths Drills - Retail Tube
Description
Technical Uses
General Uses
For drilling carbon and alloy steel, cast iron, non-ferrous metal and plastics.
Features
- Manufactured to DIN1897
- High quality M2 grade HSS steel
- Fully ground from solid material
- Dimensionally precise

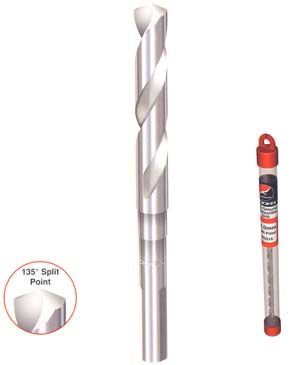

- 135° split point eradicates the need to pre-drill/centre punch. Prevents 'walking' and enables faster penetration.
- High performance split point tip.
Data
| Article Number | Drill Diameter (mm) | Imperial Equivalent | Flute Length | Overall Length | Tube Qty. | Carton Qty.
|
|---|
| BS135 | 13.5 | | 3" | 6" | 1 | 10
| | BS14 | 14 | 9/16" | 3" | 6" | 1 | 10
| | BS145 | 14.5 | | 3" | 6" | 1 | 10
| | BS15 | 15 | | 3" | 6" | 1 | 10
| | BS155 | 15.5 | 5/8" | 3" | 6" | 1 | 10
| | BS16 | 16 | | 3" | 6" | 1 | 10
| | BS165 | 16.5 | | 3" | 6" | 1 | 10
| | BS17 | 17 | 11/16" | 3" | 6" | 1 | 10
| | BS175 | 17.5 | | 3" | 6" | 1 | 10
| | BS18 | 18 | | 3" | 6" | 1 | 10
| | BS185 | 18.5 | | 3" | 6" | 1 | 10
| | BS19 | 19 | 3/4" | 3" | 6" | 1 | 10
| | BS195 | 19.5 | | 3" | 6" | 1 | 10
| | BS20 | 20 | 13/16" | 3" | 6" | 1 | 10
| | BS22 | 22 | 7/8" | 3" | 6" | 1 | 10
| | BS25 | 25 | 1" | 3" | 6" | 1 | 10
| |
|
|
