EA
EA
Data

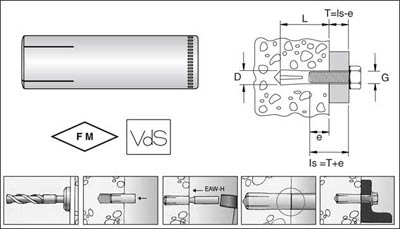

| Part No. | Finish | Size | Length | Class | D (mm) | L | Drill (mm) | G | e (mm) | Approval: | Weight | Box Qty
|
|---|
| EAM6 | SS | M6 | | - | 8 | 25 | 8 | M6 | 6 to 11 | | 0.06 | 100
| | EAM8 | SS | M8 | | - | 10 | 30 | 10 | M8 | 8 to 13 | | 0.01 | 100
| | EAM10 | SS | M10 | | 3.0kN* | 12 | 40 | 12 | M10 | 10 to 17 | Vds, FM | 0.02 | 50
| | EAM12 | SS | M12 | | 3.6kN* | 15 | 50 | 15 | M12 | 12 to 18 | FM | 0.05 | 25
| | EAM16 | SS | M16 | | 5.7kN* | 20 | 65 | 20 | M16 | 16 to 21 | FM | 0.1 | 20
| | EAM6 | ZP | M6 | | - | 8 | 25 | 8 | M6 | 6 to 11 | | 0 | 100
| | EAM8 | ZP | M8 | | 1.8kN* | 10 | 30 | 10 | M8 | 8 to 13 | VdS | 0.01 | 100
| | EAM8X40 | ZP | M8 | 40 | 3kN* | 10 | 40 | 10 | M8 | 8 to 13 | Vds, FM | 0.02 | 50
| | EAM10 | ZP | M10 | | 3.6kN* | 12 | 40 | 12 | M10 | 10 to 17 | Vds, FM | 0.02 | 50
| | EAM12 | ZP | M12 | | 5.7kN* | 15 | 50 | 15 | M12 | 12 to 18 | Vds, FM | 0.05 | 25
| | EAM16 | ZP | M16 | | 7.4kN* | 20 | 65 | 20 | M16 | 16 to 21 | Vds, FM | 0.1 | 20
| | EAM20 | ZP | M20 | | 11.3kN* | 25 | 80 | 25 | M20 | 20 to 30 | Vds, FM | 0.19 | 10
| |
|
| |
