Z and U Shape Fittings


P1377

P1377

[ back to index ] [ image ] [ description ] [ data ]

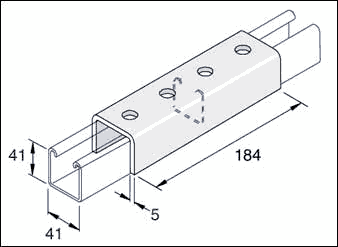

P1377

Description

Standard Dimensions:

The following are standard dimensions unless otherwise stated.All dimensions subject to commercial tolerance.

  • Hole size: 14mm diameter
  • Hole spacing (from end): 20mm from end of fitting
  • Hole spacing (on centre) 48mm centre to centre
  • Fitting width: 40mm

Data

Part No.Finish Weight Box Qty
P1377 HG 0.94 10
P1377 SS 0.91 10
