P1737
P1737
Description

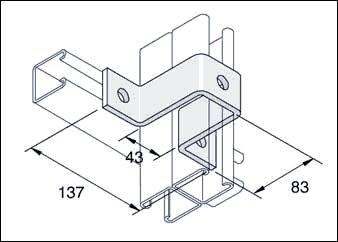

Standard Dimensions:
The following are standard dimensions unless otherwise stated.All dimensions subject to commercial tolerance.
- Hole size: 14mm diameter
- Hole spacing (from end): 20mm from end of fitting
- Hole spacing (on centre) 48mm centre to centre
- Fitting width: 40mm
Data
| Part No. | Finish |
Weight |
Box Qty |
|---|
| P1737 |
HG |
0.46 |
10 |
| P1737 |
SS |
0.47 |
10 |
|
|
|
