Channel Bases


P2073

P2073

[ back to index ] [ image ] [ description ] [ data ]

P2073

Description

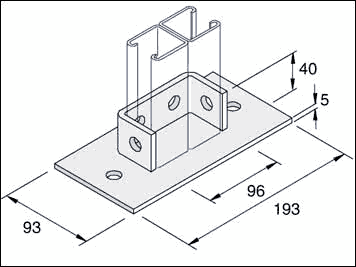

Standard Dimensions:

The following are standard dimensions unless otherwise stated.All dimensions subject to commercial tolerance.

  • Hole size: 14mm diameter
  • Hole spacing (from end): 20mm from end of fitting
  • Hole spacing (on centre) 48mm centre to centre
  • Fitting width: 40mm

Data

Part No.FinishWeightBox Qty
P2073 HG 1.09 10
P2073 SS 1.12 10
