Wing Fittings


P2346

P2346

[ back to index ] [ image ] [ description ] [ data ]

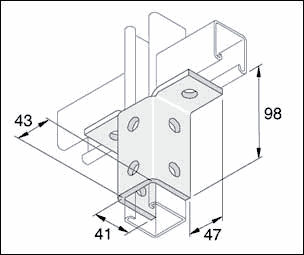

P2346

Description

Standard Dimensions:

The following are standard dimensions unless otherwise stated.All dimensions subject to commercial tolerance.

  • Hole size: 14mm diameter
  • Hole spacing (from end): 20mm from end of fitting
  • Hole spacing (on centre) 48mm centre to centre
  • Fitting width: 40mm

Data

Part No.Finish Weight Box Qty
P2346 HG 0.66 10
P2346 SS 0.72 25
