P2348-S1
P2348-S1
Description

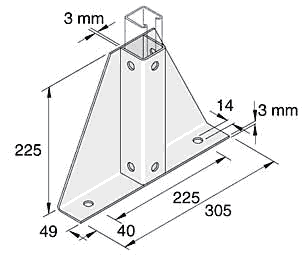

Standard Dimensions:
The following are standard dimensions unless otherwise stated.All dimensions subject to commercial tolerance.
- Hole size: 14mm diameter
- Hole spacing (from end): 20mm from end of fitting
- Hole spacing (on centre) 48mm centre to centre
- Fitting width: 40mm
Data
| Part No. | Finish | Weight |
|---|
| P2348-S1 |
HG |
2.21 |
| P2348-S1 |
SS |
3.26 |
|
|
|
