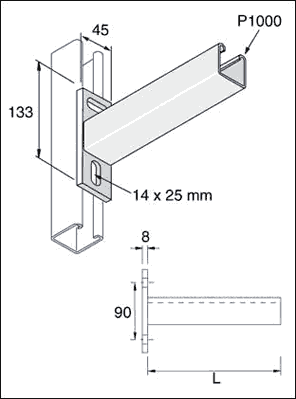

Cantilever Arms

P2663

P2663

[ back to index ] [ image ]   [ data ]

P2663

Data

Load Data (All Loads are kN)
Part No.
P2663/150 150 6.2 3.1 3.1 2.06
P2663/300 300 3.2 1.6 1.6 1.06
P2663/450 450 2.15 1.07 1.07 0.71
P2663/600 600 1.62 0.81 0.81 0.54
P2663/750 750 1.3 0.65 0.65 0.43



Part No. Finish Size Length Weight
P2663/150 HG 41mm 150mm 0.8
P2663/300 HG 41mm 300mm 1.17
P2663/450 HG 41mm 450mm 1.59
P2663/600 HG 41mm 600mm 2.03
P2663/750 HG 41mm 750mm 2.53
P2663/150 SS 41mm 150mm 0.81
P2663/300 SS 41mm 300mm 1.2
P2663/450 SS 41mm 450mm 1.62
P2663/600 SS 41mm 600mm 2.08
P2663/750 SS 41mm 750mm 2.62
