Cantilever Arms

P2665

P2665

[ back to index ] [ image ]   [ data ]

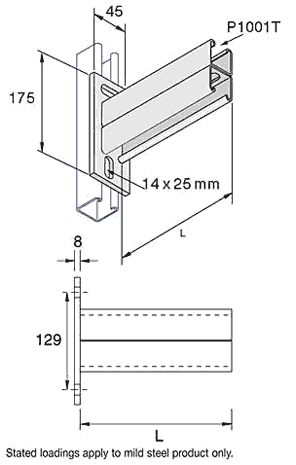

P2665

Data

Load Data (All Loads are kN)
Part No.
P2665/150 150 8.82 4.41 4.41 2.94
P2665/300 300 6.47 3.23 3.24 2.15
P2665/450 450 4.31 2.15 2.15 1.43
P2665/600 600 3.23 1.61 1.61 1.07
P2665/750 750 2.58 1.29 1.29 0.86



Part No. Finish Size Length Weight
P2665/150 HG 41mm 150mm 1.44
P2665/300 HG 41mm 300mm 2.21
P2665/450 HG 41mm 450mm 3.09
P2665/600 HG 41mm 600mm 3.79
P2665/750 HG 41mm 750mm 4.73
P2665/150 SS 41mm 150mm 1.89
P2665/300 SS 41mm 300mm 2.27
P2665/450 SS 41mm 450mm 3.07
P2665/600 SS 41mm 600mm 3.87
P2665/750 SS 41mm 750mm 4.68
