UBC
UBC
Data

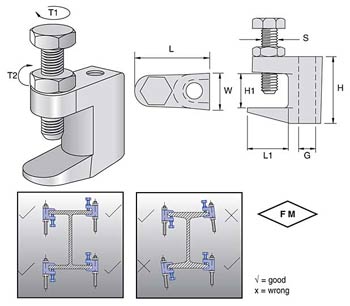

| Part No. | Finish | Size | Fmax (kN) | T1 (Nm) | T2 (Nm) | L (mm) | H (mm) | W (mm) | H1 (mm) | L1 (mm) | G | S (mm) | Approval: | Weight | Box Qty
|
|---|
| UBC6T | ZP | M6 | 1.1 | 8 | 11 | 36 | 35 | 19 | 17 | 20 | M6 | 8 | | 0.09 | 50
| | UBC8D | ZP | 8mm | 1.1 | 8 | 11 | 36 | 35 | 19 | 17 | 20 | 9 | 8 | | 0.09 | 50
| | UBC8T | ZP | M8 | 1.1 | 8 | 11 | 36 | 35 | 19 | 17 | 20 | M8 | 8 | | 0.09 | 50
| | UBC10D | ZP | 10mm | 2.4 | 8 | 22 | 45 | 40 | 22 | 19 | 22 | 11 | 10 | FM | 0.15 | 50
| | UBC10T | ZP | M10 | 2.4 | 8 | 22 | 45 | 40 | 22 | 19 | 22 | M10 | 10 | FM | 0.16 | 50
| | UBC12D | ZP | 12mm | 3.1 | 8 | 22 | 50 | 46 | 25 | 23 | 28 | 13 | 10 | FM | 0.21 | 25
| | UBC12T | ZP | M12 | 3.1 | 8 | 22 | 50 | 46 | 25 | 23 | 28 | M12 | 10 | FM | 0.21 | 25
| |
|
| |
